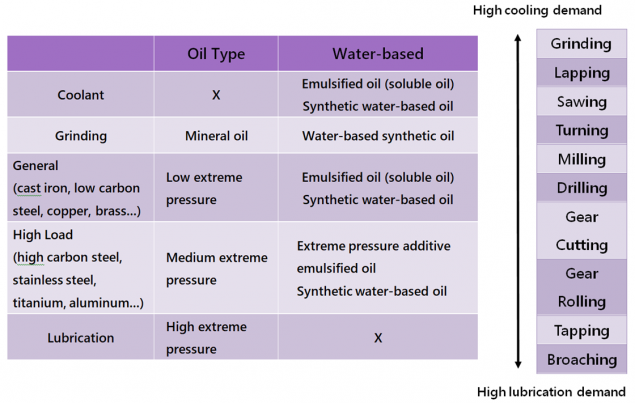

The differentiation of cutting fluids in applicationThe differentiation of cutting fluids in application
Applicability
.png)
Lubricant additives
Applicability
Lubricant additives
■ CT-09H
。CT-09H is a synthetic phosphate ester of vegetable oil, which has excellent lubricity and can
reduce boundary friction and wear under extreme pressure conditions. It can be used as an
additive for lubricants, oil-based cutting fluids, water-basedcutting fluids, and extreme
pressure lubrication.
reduce boundary friction and wear under extreme pressure conditions. It can be used as an
additive for lubricants, oil-based cutting fluids, water-basedcutting fluids, and extreme
pressure lubrication.
。Water-based lubricants based on CT-09H have low foam and can be quickly eliminated.
■ TDEH
。TDEH is a fatty acid amide with the properties of emulsification, dispersion, thickening,
solubilization, and foaming stabilization. It can be used as a lubricant, corrosion inhibitor,
and rust preventive agent in the metal processing industry.
solubilization, and foaming stabilization. It can be used as a lubricant, corrosion inhibitor,
and rust preventive agent in the metal processing industry.

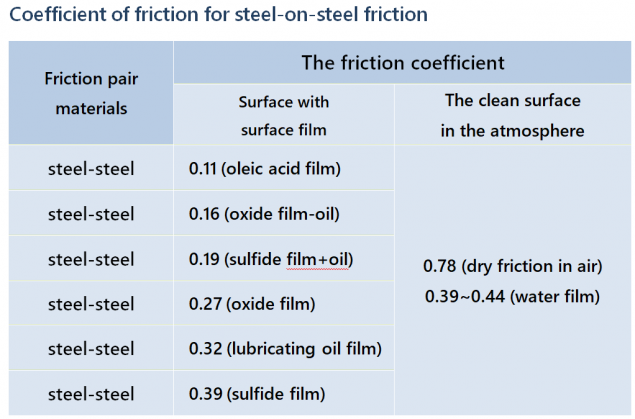

。Taking the " friction coefficient of steel on steel " as an example (as shown in the figure above),
lubricating oil with mineral oil as the main component has a poor oil film strength and a
higher friction coefficient of 0.32.
lubricating oil with mineral oil as the main component has a poor oil film strength and a
higher friction coefficient of 0.32.
。CT-09H has excellent lubricity. In Pin-on-Disk wear tests, the friction coefficient can be
reduced to below 0.15 at a concentration of 5% (the friction coefficient of dry friction
between steel and steel in the atmosphere is 0.78), and the friction coefficient is even
lower at higher concentrations.
reduced to below 0.15 at a concentration of 5% (the friction coefficient of dry friction
between steel and steel in the atmosphere is 0.78), and the friction coefficient is even
lower at higher concentrations.
Wetting and dispersing additives for latexWetting and dispersing additives for latex
In the production process of latex gloves, as a wetting agent and dispersant for adsorbing slurry,
it helps calcium carbonate and calcium nitrate to be uniformly adsorbed in the glove mold, so that
a uniform coating can be formed on the surface of the glove when the latex is dipped and the
adhesion can be enhanced.

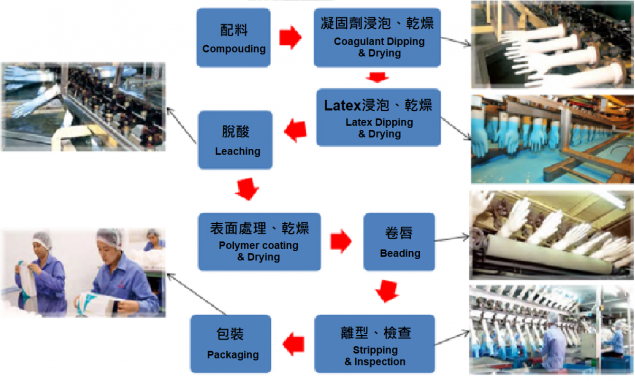

Latex gloves manufacturing process
(2).png)
Function
Ø It is added in the Coagulant bath process to help the calcium carbonate and other slurries
to be uniformly precipitated in the gloves to promote the quality of the latex coating.
Ø Adding it in the latex tank process can avoid the occurrence of pinholes on the surface of
the gloves.
it helps calcium carbonate and calcium nitrate to be uniformly adsorbed in the glove mold, so that
a uniform coating can be formed on the surface of the glove when the latex is dipped and the
adhesion can be enhanced.
Latex gloves manufacturing process
Function
Ø It is added in the Coagulant bath process to help the calcium carbonate and other slurries
to be uniformly precipitated in the gloves to promote the quality of the latex coating.
Ø Adding it in the latex tank process can avoid the occurrence of pinholes on the surface of
the gloves.

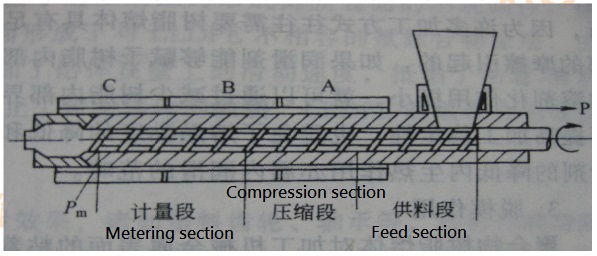

Classification and function of internal lubricant for plasticClassification and function of internal lubricant for plastic

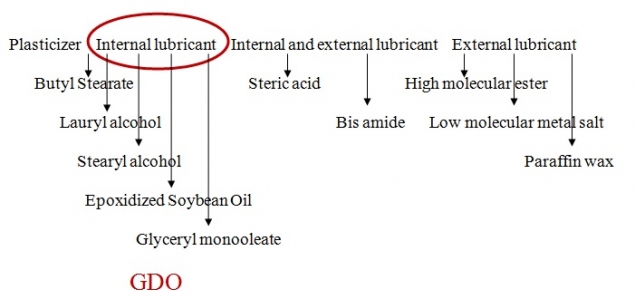

Classification of internal lubricant for PVC
Problems in manufacture
■ High viscosity of molten polymer, low fluidity
■ High friction heat result in the decompose of resin
■ Adhesion between molten polymer and equipment
Efficacy of lubricant
■ Reducing the viscosity of molten polymer, increasing fluidity
■ Reducing the formation of friction heat
■ Reducing the friction and adhesion between molten polymer and the surface of metal
Classification of internal lubricant for PVC
Problems in manufacture
■ High viscosity of molten polymer, low fluidity
■ High friction heat result in the decompose of resin
■ Adhesion between molten polymer and equipment
Efficacy of lubricant
■ Reducing the viscosity of molten polymer, increasing fluidity
■ Reducing the formation of friction heat
■ Reducing the friction and adhesion between molten polymer and the surface of metal
Glossy seamless paper tubeGlossy seamless paper tube
High-tech glossy seamless electronic paper tube enjoys patents in Taiwan, has been used in
high-tech computer IC copper and glass fiber on electronic substrates; it is the new material
that is indispensable for high-tech industry. This new material must be clear and seamless
smooth surface in order to produce in a clean room for high-tech IC electronic purposes,
and is the latest material development.

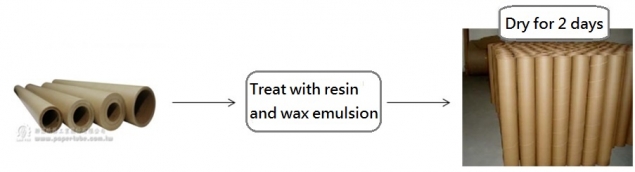

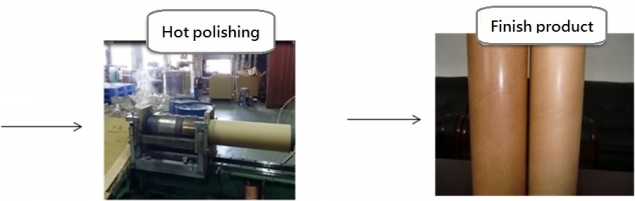

Seamless paper tube manufacture process
We provide high performance wax emulsion LB-229 for High-tech glossy seamless electronic
paper tube manufacture. It provides lubricity in hot polishing process to protect paper tube
from damage.It will not result in vibration and loud noise.
High-tech glossy seamless electronic paper tube enjoys patents in Taiwan, has been used in
high-tech computer IC copper and glass fiber on electronic substrates; it is the new material
that is indispensable for high-tech industry. This new material must be clear and seamless
smooth surface in order to produce in a clean room for high-tech IC electronic purposes,
and is the latest material development.
Seamless paper tube manufacture process
We provide high performance wax emulsion LB-229 for High-tech glossy seamless electronic
paper tube manufacture. It provides lubricity in hot polishing process to protect paper tube
from damage.It will not result in vibration and loud noise.
Application of multifunctional comb-type pigment dispersantApplication of multifunctional comb-type pigment dispersant
Dispersing efficacy test :Take water based white slurry application for example
(1) Dispersingconditions
Materials : Calcium carbonate, Titanium dioxide
Solvent : water
Dispersant : DIS-980N
Antifoam : DF-288P
Proportion and mixing order
Water, dispersant, defoamer → mixing → Materials → mixing → Thixotropic thickeners

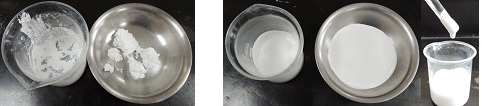

(2) Results: 70% white slurry

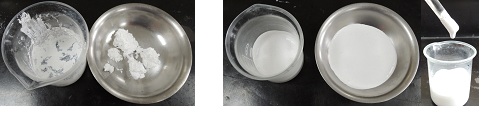

Traditional dispersant Multifunctional comb-type pigment dispersant DIS-980N
.jpg)
DIS-980N is a good dispersant for pigments. It can improve the floating of color, and makes
the paint brilliant.
Dispersing efficacy test :Take water based white slurry application for example
(1) Dispersingconditions
Materials : Calcium carbonate, Titanium dioxide
Solvent : water
Dispersant : DIS-980N
Antifoam : DF-288P
Proportion and mixing order
| Water | 29.4 |
| DIS-980N | 0.5 |
| DF-288P | 0.1 |
| Titanium dioxide (or Calcium carbonate) | 70 |
| 100 |
Water, dispersant, defoamer → mixing → Materials → mixing → Thixotropic thickeners
(2) Results: 70% white slurry
Traditional dispersant Multifunctional comb-type pigment dispersant DIS-980N
DIS-980N is a good dispersant for pigments. It can improve the floating of color, and makes
the paint brilliant.

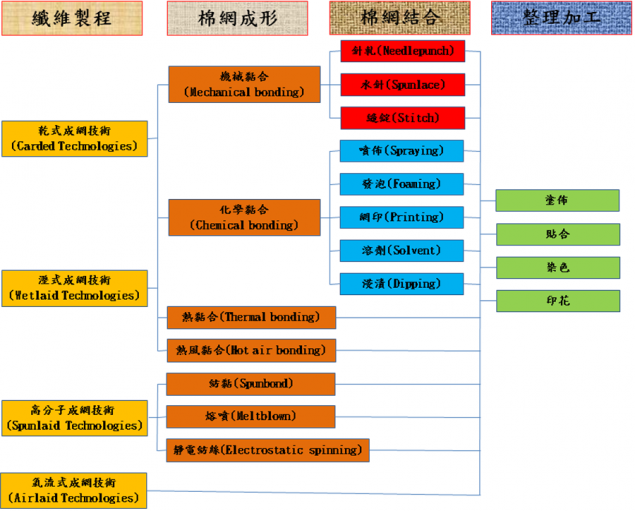

Non-woven fabric manufacturing processNon-woven fabric manufacturing process

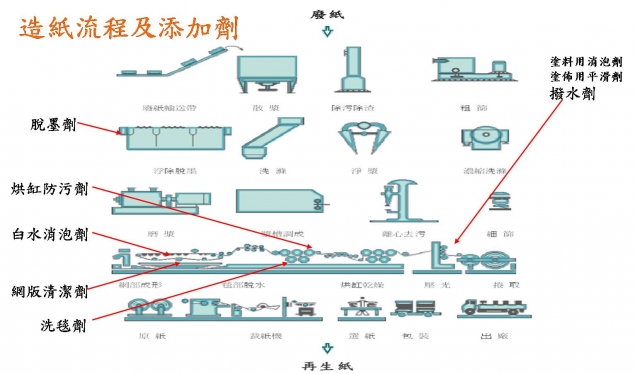

Paper Manufacture Process and Its AdditivesPaper Manufacture Process and Its Additives
Process of Polyester Fabric Manufacture and The Use Occasions of Finishing AgentProcess of Polyester Fabric Manufacture and The Use Occasions of Finishing Agent

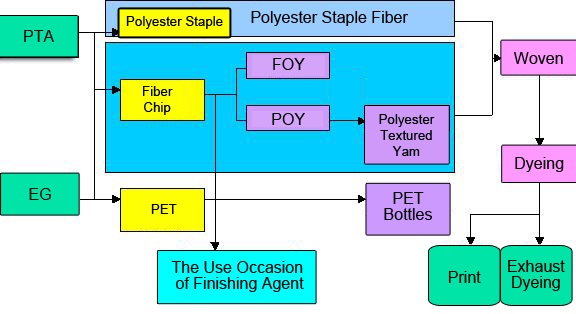

Process of Polyester Fabric Manufacture
.jpg)

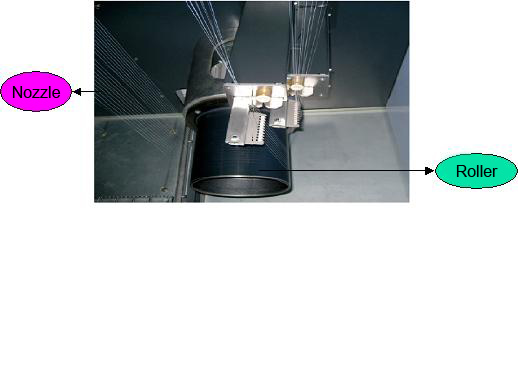

The Use Occasions of Finishing Agent
Fiber Chip → Melting → Nozzle → Roller → Add Finishing Agent → Tensile
( Nozzle Spray 或是 油棍 )
.jpg)
LYSTEX SOP-52M : Spinngin finish oil for PET from LYSURF have excellent anti-static, adhesion,
lubricant, and oil lubrication rate.

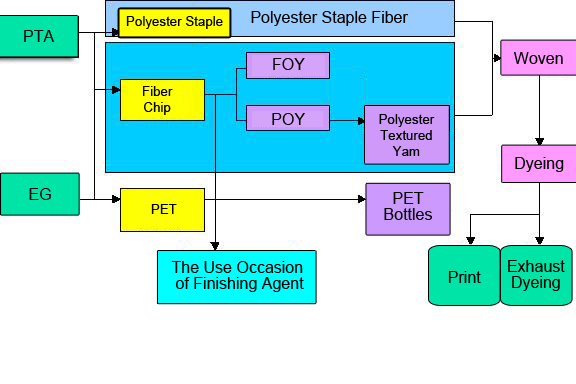

Process of Polyester Fabric Manufacture

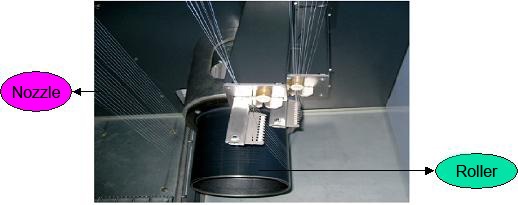

The Use Occasions of Finishing Agent
Fiber Chip → Melting → Nozzle → Roller → Add Finishing Agent → Tensile
( Nozzle Spray 或是 油棍 )
LYSTEX SOP-52M : Spinngin finish oil for PET from LYSURF have excellent anti-static, adhesion,
lubricant, and oil lubrication rate.
